Product Details:
Payment & Shipping Terms:
|

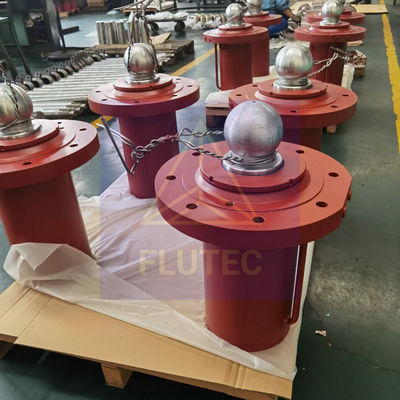

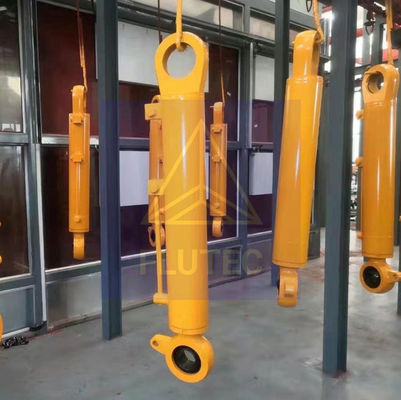

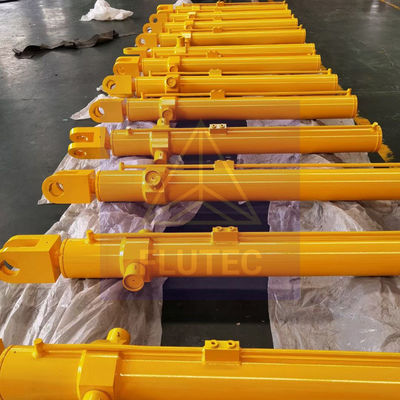

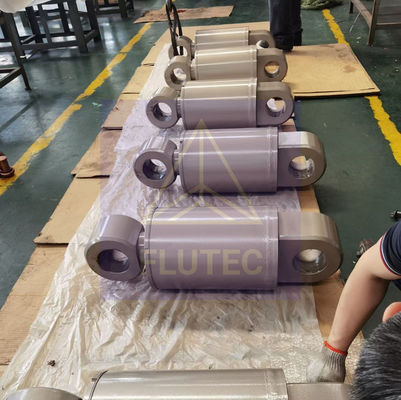

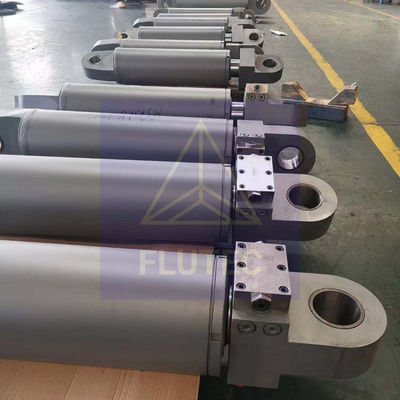

| Model NO.: | 20x3000 | Name: | Piston Type Hydraulic Press Cylinder |
|---|---|---|---|
| Structure: | Piston Type | Material: | Alloy Steel |

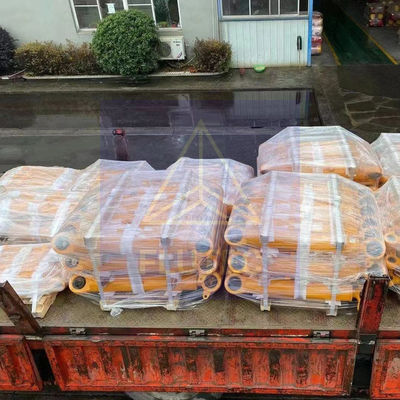

| Transport Package: | Standard Seaworthy Wooden Box | Trademark: | FLUTEC |
| HS Code: | 8412210090 | Certification: | GS, RoHS, ISO9001, Dnv, SGS, BV, ABS, Gl |
| Pressure: | Medium Pressure | Work Temperature: | Normal Temperature |
| Acting Way: | Double Acting | Working Method: | Straight Trip |
| Adjusted Form: | Regulated Type | Customization: | Available | Customized Request |
| High Light: | Alloy Steel Hydraulic Press Cylinder,Hydraulic Press Cylinder Piston Type,ISO9001 Agriculture Hydraulic Cylinder |
||
| Cylinder Type | Mill type, Head Bolted, Base Welded |
| Bore Diameter | Up to 2500mm |
| Rod Diameter | Up to 2000mm |
| Stroke Length | Up to 20,000mm |
| Piston Rod Material | AISI 1045, AISI 4140, AISI 4340, 20MnV6, Stainless steel 2Cr13 or 1Cr17Ni2 |
| Rod Surface Treatment | Hard chrome plated, Chrome/Nickel plated, Ceramic coated |
| Tube Material | Carbon steel AISI1045 or ST52.3, Alloy steel AISI4140 or 27SiMn |
| Tube Surface Painting | Colors according to RAL and thickness according to customer needs |
| Mounting Type | Clevis, Cross tube, Flange, Trunnion, Tang, Thread |
| Design Pressure | Up to 40Mpa |
| Seal Kits Type | PARKER, MERKEL, HALLITE, NOK, TRELLEBORG |
| Quality Assurance | 1 year |
| Certificate | SGS, BV, ABS ,GL, DNV etc. |
| Application | Mobile Equipment,Cement Mill, steel mill, Hydraulic press, etc. |
| Quality Process | Our quality management system is certified to ISO 9001 |
| Quality control standards include material records, process control plans, | |
| Manufacturing approvals and inspection data | |
| Testing Standards | All products undergo 100% pressure testing 1.5 times the maximum allowable working pressure or to customer specifications |
| Static and dynamic pressure testing. | |
| Ultraviolet leak detection technology. | |
| Non-destructive testing. | |
| Fluid Cleanliness | Real-time monitoring and test phase documentation |
| Independent sampling and oil diagnostic control |

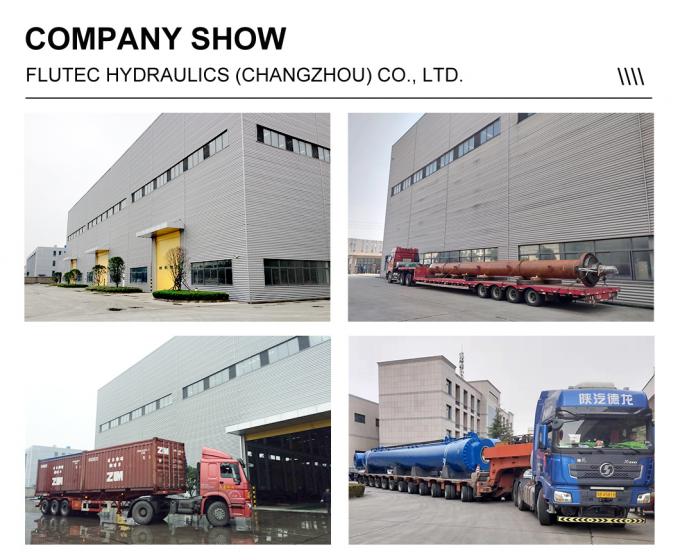

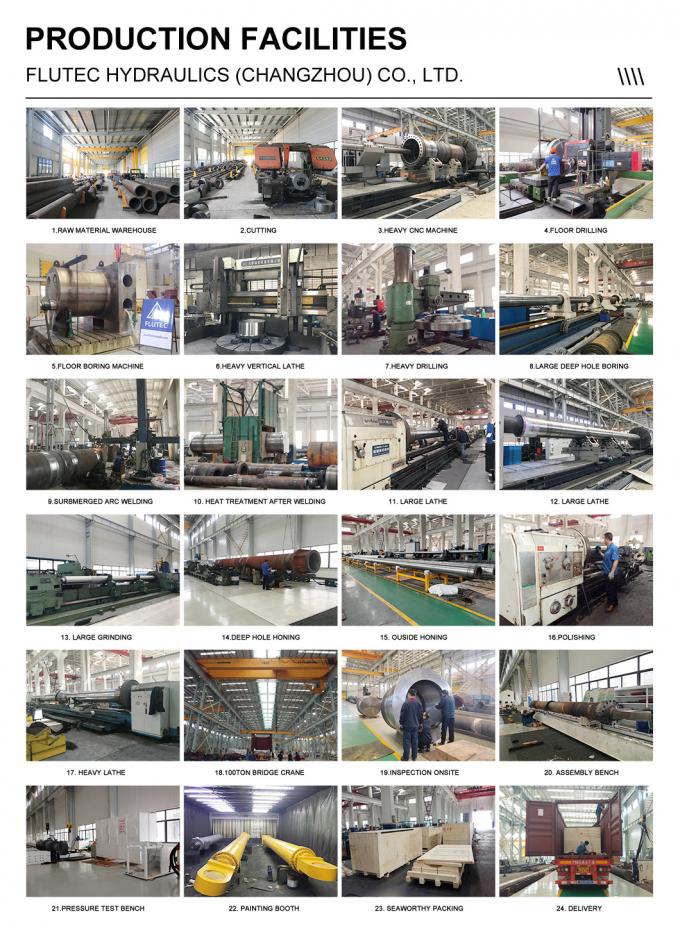

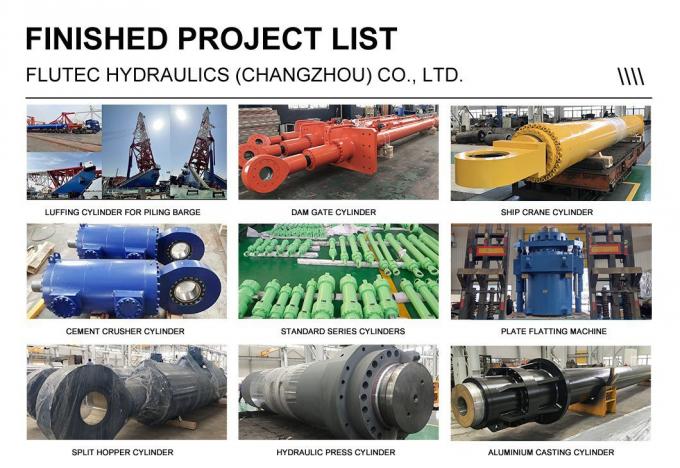

FLUTEC HYDRAULICS is an expert at designing and manufacturing a broad range of custom engineered hydraulic cylinders and cylinder systems as well as custom engineered press bolster plates. We are proud to offer superior quality products and services for various applications including industrial, construction, mobile, agricultural, mining, steel mill, hydraulic press, etc. Our highly skilled team and modern technical facilities allow us to manufacture large bore hydraulic cylinders and long stroke hydraulic cylinders with 100% confidence and assurance.
Q1: What does your company do?
