Product Details:
Payment & Shipping Terms:
|
| Model NO.: | 350Ton-12500 | Structure: | Piston Type |
|---|---|---|---|
| Material: | Carbon Steel | Transport Package: | Standard Seaworthy Wooden Case |
| Trademark: | FLUTEC | Origin: | Jiangsu, China |
| HS Code: | 8412210090 | Supply Ability: | 3500 |
| Certification: | ISO9001, Dnv, SGS, BV, ABS, Gl | Pressure: | Medium Pressure |
| Work Temperature: | Normal Temperature | Acting Way: | Double Acting |
| Working Method: | Straight Trip | Adjusted Form: | Regulated Type |
| Customization: | Available | Customized Request | ||

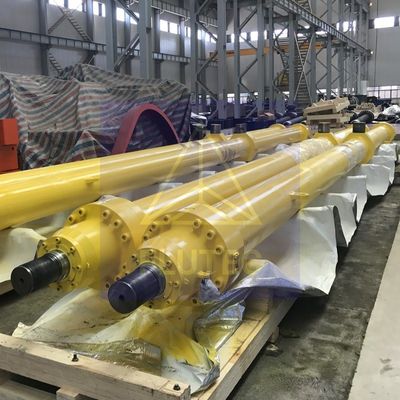

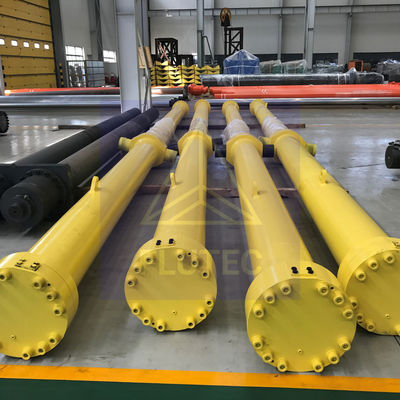

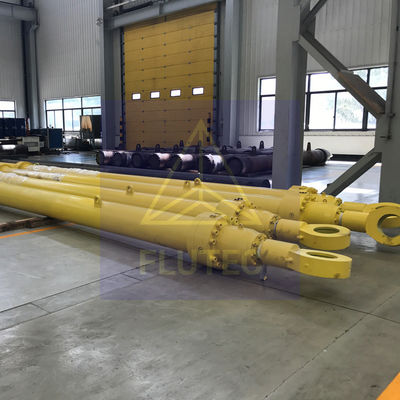

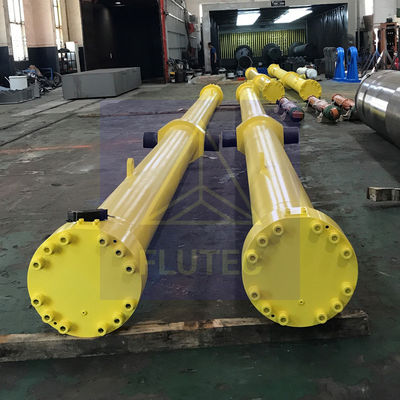

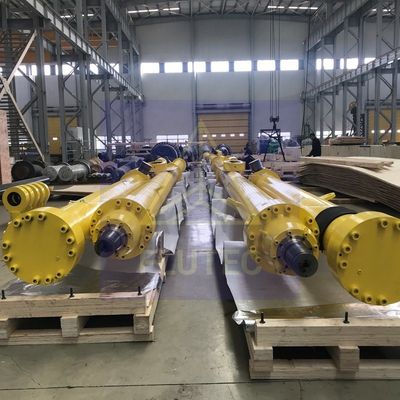

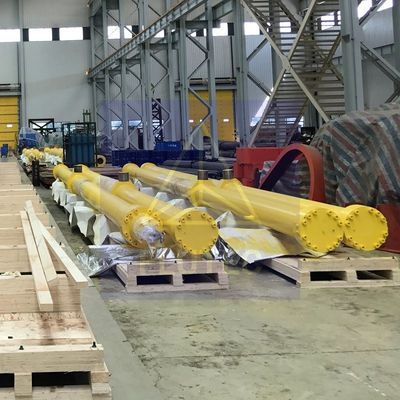

| High Light: | ISO9001 Hydraulic Cylinder For Dam Gate,Plant Hydraulic Cylinder For Dam Gate |
||
Technical Data
| Cylinder Type | Mill type, Head Bolted, Base Welded |
| Bore Diameter | Up to 2500mm |
| Rod Diameter | Up to 2000mm |
| Stroke Length | Up to 20,000mm |
| Piston Rod Material | AISI 1045, AISI 4140, AISI 4340, 20MnV6 |
| Rod Surface Treatment | Hard chrome plated, Chrome/Nickel plated, Ceramic coated |
| Tube Material | Carbon steel AISI1045 or ST52.3, Alloy steel AISI4140, Stainless steel 2Cr13 or 1Cr17Ni2 |
| Tube Surface Painting | Colors according to RAL and thickness according to customer needs |
| Mounting Type | Clevis, Cross tube, Flange, Trunnion, Tang, Thread |
| Design Pressure | Up to 40Mpa |
| Seal Kits Type | PARKER, MERKEL, HALLITE, NOK, TRELLEBORG |
| Quality Assurance | 1 year |
| Certificate | SGS, BV, ABS ,GL, DNV etc. |

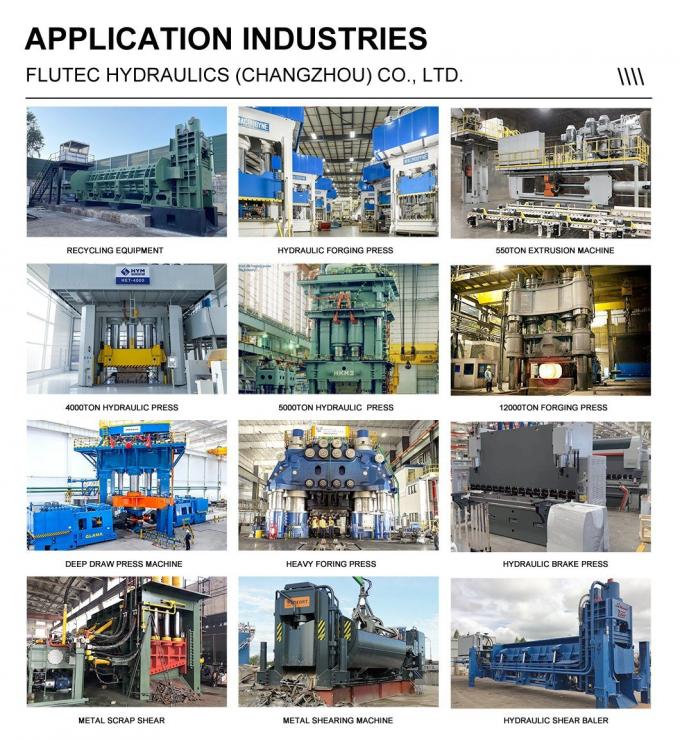

| Application | Heavy industry, steel mill, Hydraulic press, etc. |
| Quality Process | Our quality management system is certified to ISO 9001 |
| Quality control standards include material records, process control plans, | |
| Manufacturing approvals and inspection data | |
| Testing Standards | All products undergo 100% pressure testing 1.5 times the maximum allowable working pressure or to customer specifications |
| Static and dynamic pressure testing. | |
| Ultraviolet leak detection technology. | |
| Non-destructive testing. | |
| Fluid Cleanliness | Real-time monitoring and test phase documentation |
| Independent sampling and oil diagnostic control |
