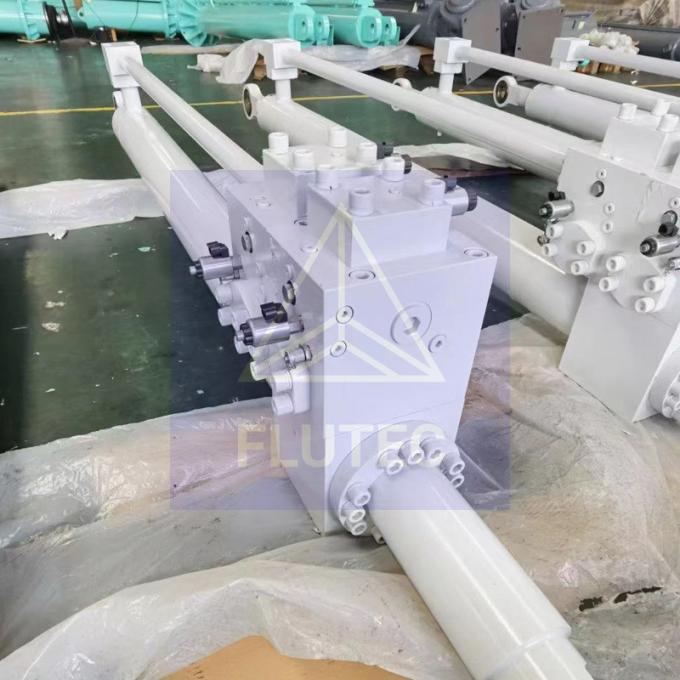

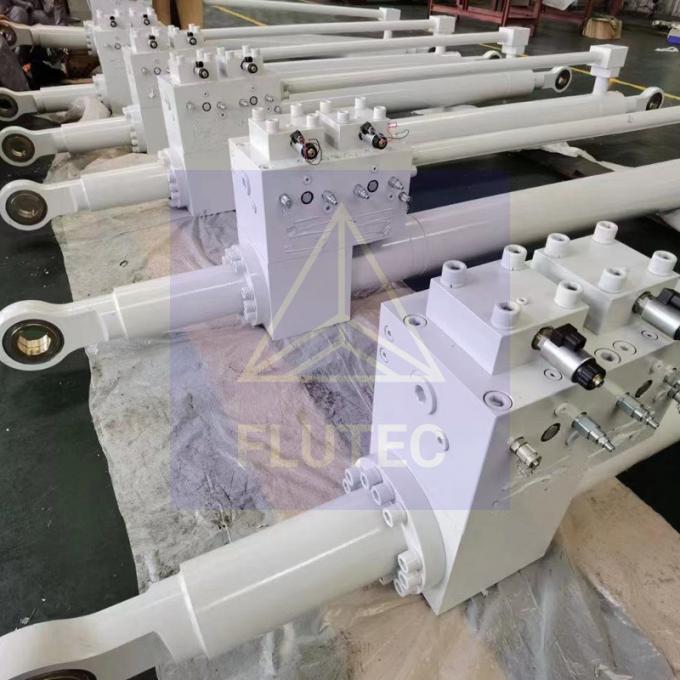

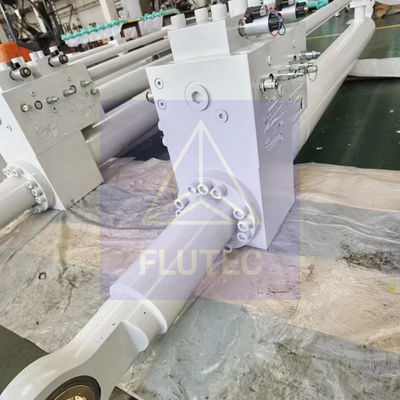

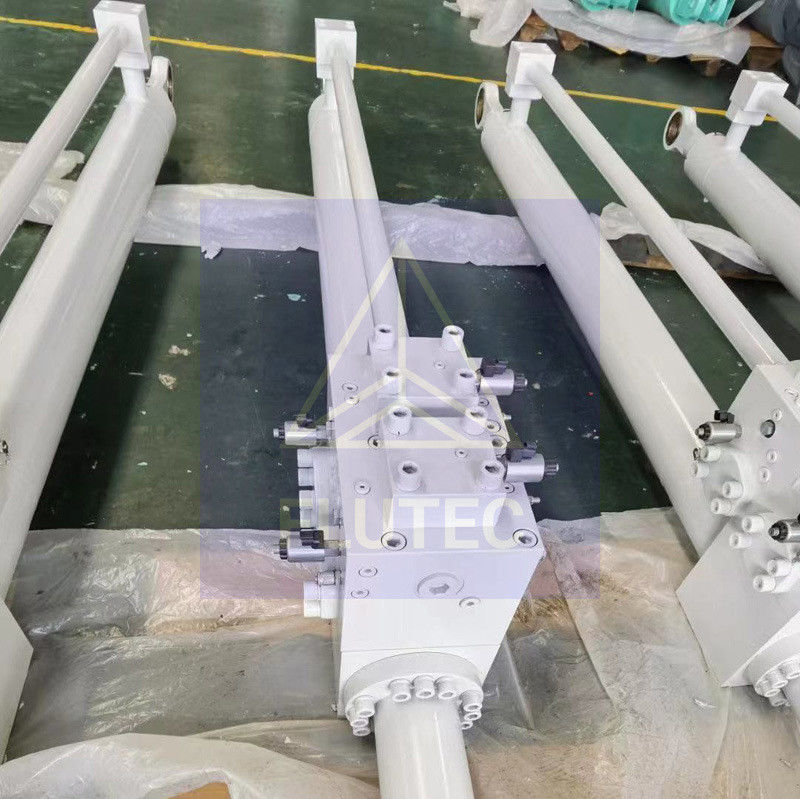

Quality Assured Cylinder for Marine Hydraulic Press Equipment

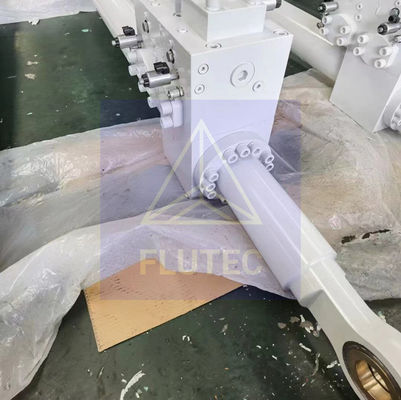

Large Image : Quality Assured Cylinder for Marine Hydraulic Press Equipment

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Flutec
Certification:	ISO9001,Dnv, SGS, BV, ABS, Gl
Model Number:	1743
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	$ 500- $ 100000
Packaging Details:	Standard Seaworthy Wooden Case
Delivery Time:	30Days
Payment Terms:	L/C T/T D/P

Contact Now

Detailed Product Description

Model NO.:	300/200x1680	Structure:	Piston Type
Material:	Alloy Steel	Cylinder Type:	Mill Type, Head Bolted, Base Welded
Bore Diameter:	Up To 2500mm	Rod Diameter:	Up To 2000mm
Stroke Length:	Up To 20,000mm	Design Pressure:	Up To 40MPa
Transport Package:	Standard Seaworthy Wooden Box	Trademark:	FLUTEC
Origin:	Jiangsu, China	HS Code:	8412210090
Certification:	GS, RoHS, ISO9001, Dnv, SGS, BV, ABS, Gl	Pressure:	Medium Pressure
Work Temperature:	Normal Temperature	Acting Way:	Double Acting
Working Method:	Straight Trip	Adjusted Form:	Regulated Type
Customization:	Available \| Customized Request	Name:	Marine Hydraulic Cylinder
Highlight:	Marine Hydraulic Press Equipment Cylinder , Marine Hydraulic Press Cylinder , Quality Assured Marine Hydraulic Cylinder

Maritime hydraulic cylinders are subjected to cyclic loads due to the motion of the vessel or platform. To prevent fatigue failure, the structural design of the cylinder must be optimized. The use of high - strength materials with good fatigue resistance is crucial. For example, high - strength alloy steels can be used for the cylinder barrel and piston rod.

The shape of the cylinder components also affects fatigue life. Smooth transitions and rounded edges are preferred to reduce stress concentrations. Finite element analysis (FEA) can be used to predict stress distributions in the cylinder under cyclic loading conditions. By analyzing the results of FEA, designers can modify the shape and dimensions of the components to minimize stress concentrations and improve fatigue life.

Product Description

Welcome to FLUTEC HYDRAULICS!

Technical Data

Cylinder Type	Mill type, Head Bolted, Base Welded
Bore Diameter	Up to 2500mm
Rod Diameter	Up to 2000mm
Stroke Length	Up to 20,000mm
Piston Rod Material	AISI 1045, AISI 4140, AISI 4340, 20MnV6, Stainless steel 2Cr13 or 1Cr17Ni2
Rod Surface Treatment	Hard chrome plated, Chrome/Nickel plated, Ceramic coated
Tube Material	Carbon steel AISI1045 or ST52.3, Alloy steel AISI4140 or 27SiMn
Tube Surface Painting	Colors according to RAL and thickness according to customer needs
Mounting Type	Clevis, Cross tube, Flange, Trunnion, Tang, Thread
Design Pressure	Up to 40Mpa
Seal Kits Type	PARKER, MERKEL, HALLITE, , TRELLEBORG
Quality Assurance	1 year
Certificate	SGS, BV, ABS ,GL, DNV etc.
Application	Mobile Equipment,Cement Mill, steel mill, Hydraulic press, etc.

Quality Assurance

Quality Process	Our quality management system is certified to ISO 9001
	Quality control standards include material records, process control plans,
	Manufacturing approvals and inspection data
Testing Standards	All products undergo 100% pressure testing 1.5 times the maximum allowable working pressure or to customer specifications
	Static and dynamic pressure testing.
	Ultraviolet leak detection technology.
	Non-destructive testing.
Fluid Cleanliness	Real-time monitoring and test phase documentation
Fluid Cleanliness	Independent sampling and oil diagnostic control

Quality Assured Cylinder for Marine Hydraulic Press Equipment 0

Quality Assured Cylinder for Marine Hydraulic Press Equipment 1

Quality Assured Cylinder for Marine Hydraulic Press Equipment 2

Quality Assured Cylinder for Marine Hydraulic Press Equipment 3

Quality Assured Cylinder for Marine Hydraulic Press Equipment 4

Quality Assured Cylinder for Marine Hydraulic Press Equipment 5

FLUTEC HYDRAULICS is an expert at designing and manufacturing a broad range of custom engineered hydraulic cylinders and cylinder systems as well as custom engineered press bolster plates. We are proud to offer superior quality products and services for various applications including industrial, construction, mobile, agricultural, mining, steel mill, hydraulic press, etc. Our highly skilled team and modern technical facilities allow us to manufacture large bore hydraulic cylinders and long stroke hydraulic cylinders with 100% confidence and assurance.

We understand our customers need dependable quality and excellent services with affordable cost to stay ahead in today's highly competitive market. FLUTEC HYDRAULICS can meet those requirements with our robust, efficient and long life products together with prompt services.

To be mentioned, our sales team is strictly trained both in technology and language. They are full of experiences in fluid power and machinery. We are glad to personally visit our customers to work better. Quality Assured Cylinder for Marine Hydraulic Press Equipment 6

Quality Assured Cylinder for Marine Hydraulic Press Equipment 6

Q1: What does your company do?
A: we are a supplier of high-quality hydraulic products including Hydraulic Cylinder,Honed Tube,Chromed Rod,Machined Platen,Cylinder Parts, and other components.

Q2:Are you a manufacturer or trading company?
A: We are a manufacturer.

Q3: Are you able to make Non-standard or customized products?
A: Yes, we can.

Q4: How long is your delivery time?
A: The delivery time for customized products is 15-30 working days.But it also depends on the product requirements and quantity.

Q5: Do you provide samples?
A: No, we don't provide samples.

Q6: What are your payment terms?
A: T/T/ or L/C or D/P. If you have any questions, please feel free to contact us.

Q7: What are your After-sales services?
A: Before shipment, Each individual product will be strictly inspected on our factory QC Process System. In addition, We have a Customer Service team to respond to customers' questions within 12 hours. Being helpful in solving customers' problems is always our goal.
