Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine

I'm Online Chat Now

Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine

Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine
Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine
video play

Large Image :  Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Flutec
Certification: ISO9001,Dnv, SGS, BV, ABS, Gl
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: $ 500- $ 100000
Packaging Details: Standard Seaworthy Wooden Case
Delivery Time: 30Days
Payment Terms: L/C T/T D/P
Detailed Product Description
Structure: Piston Type Material: Carbon Steel
Mounting: Optional&Customizable Working Pressure: 40MPa
Quality Assurance: 1 Year Rod Diameter: Up To 2000mm
Stroke Length: Up To 20,000mm Cylinder Type: Mill Type, Head Bolted, Base Welded
Transport Package: Standard Seaworthy Wooden Case Trademark: FLUTEC
Origin: Jiangsu, China HS Code: 8412210090
Certification: ISO9001, Dnv, SGS, BV, ABS, Gl Pressure: Medium Pressure
Work Temperature: Normal Temperature Acting Way: Double Acting
Working Method: Straight Trip Adjusted Form: Regulated Type
Customization: Available | Customized Request Name: Custom Hydraulic Cylinders
Highlight:

Shearing Machine Hydraulic Cylinders

,

Flatting Press Hydraulic Cylinders

,

Shearing Machine Custom Made Hydraulic Cylinders

Product Description


Welcome To FLUTEC HYDRAULICS!
Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine 0
Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine 1
Product Parameters

Technical Data

Cylinder TypeMill type, Head Bolted, Base Welded
Bore DiameterUp to 2500mm
Rod DiameterUp to 2000mm
Stroke LengthUp to 20,000mm
Piston Rod MaterialAISI 1045, AISI 4140, AISI 4340, 20MnV6, Stainless steel 2Cr13 or 1Cr17Ni2
Rod Surface TreatmentHard chrome plated, Chrome/Nickel plated, Ceramic coated
Tube MaterialCarbon steel AISI1045 or ST52.3, Alloy steel AISI4140 or 27SiMn
Tube Surface PaintingColors according to RAL and thickness according to customer needs
Mounting TypeClevis, Cross tube, Flange, Trunnion, Tang, Thread
Design PressureUp to 40Mpa
Seal Kits TypePARKER, MERKEL, HALLITE, , TRELLEBORG
Quality Assurance1 year
CertificateSGS, BV, ABS ,GL, DNV etc.
ApplicationMobile Equipment,Cement Mill, steel mill, Hydraulic press, etc.

Quality Assurance

Quality ProcessOur quality management system is certified to ISO 9001
Quality control standards include material records, process control plans,
Manufacturing approvals and inspection data
Testing StandardsAll products undergo 100% pressure testing 1.5 times the maximum allowable working pressure or to customer specifications
Static and dynamic pressure testing.
Ultraviolet leak detection technology.
Non-destructive testing.
Fluid CleanlinessReal-time monitoring and test phase documentation
Independent sampling and oil diagnostic control



Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine 2
Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine 3
Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine 4
Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine 5

Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine 6
Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine 7
Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine 8

Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine 9
Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine 10
Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine 11

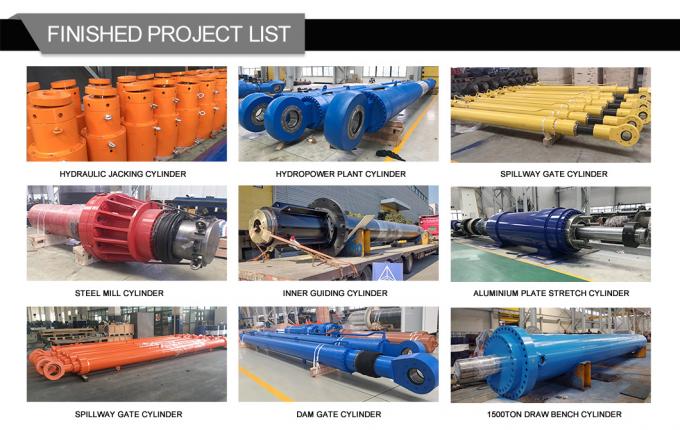

Finished Product Display

Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine 12

Application Area

Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine 13

Company Profile

  FLUTEC HYDRAULICS is an expert at designing and manufacturing a broad range of custom engineered hydraulic cylinders and cylinder systems as well as custom engineered press bolster plates. We are proud to offer superior quality products and services for various applications including industrial, construction, mobile, agricultural, mining, steel mill, hydraulic press, etc. Our highly skilled team and modern technical facilities allow us to manufacture large bore hydraulic cylinders and long stroke hydraulic cylinders with 100% confidence and assurance.
  We understand our customers need dependable quality and excellent services with affordable cost to stay ahead in today's highly competitive market. FLUTEC HYDRAULICS can meet those requirements with our robust, efficient and long life products together with prompt services.
  To be mentioned, our sales team is strictly trained both in technology and language. They are full of experiences in fluid power and machinery. We are glad to personally visit our customers to work better.

Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine 14Flatting Press Custom Made Hydraulic Cylinders For Shearing Machine 15

FAQ

Q1: What does your company do?
A: we are a supplier of high-quality hydraulic products including Hydraulic Cylinder,Honed Tube,Chromed Rod,Machined Platen,Cylinder Parts, and other components.

Q2:Are you a manufacturer or trading company?
A: We are a manufacturer.

Q3: Are you able to make Non-standard or customized products?
A: Yes, we can. Custom-made Hydraulic Cylinder is our key business.

Q4: How long is your delivery time?
A: The delivery time for customized products is 30 working days.But it also depends on the product requirements and quantity.

Q5: Do you provide samples?
A: No, we don't provide samples.

Q6: What are your payment terms?
A: T/T/ or L/C or D/P. If you have any questions, please feel free to contact us.

Q7: What are your After-sales services?
A: Before shipment, Each individual product will be strictly inspected on our factory QC Process System. In addition, We have a Customer Service team to respond to customers' questions within 12 hours. Being helpful in solving customers' problems is always our goal.
